Ep630/4 High Strength 800mm Width Rubber Conveyor Belting for Mining

Basic Info.

Model NO.	EP630/4
Feature	Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant
Tensile Strength	Strong
Export Markets	Global
Rubber Strength	8-25MPa

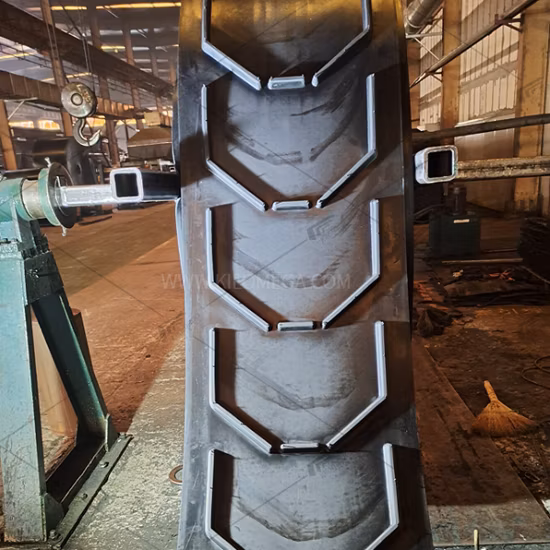

Name	Anti-Tearing Chevron Pattern Belt for Crusher Bel
Width	800mm
Max Length of a Roll	300m
Colour	Black
Top Cover	4mm
Bottom Cover	2mm
Thickness	10mm
Ply	4ply
Warranty	One Year
Package	Poly Bag
Transport Package	Poly Bag
Specification	EP630/4
Trademark	kilomega
Origin	Ningbo, China
HS Code	40101200
Production Capacity	5000meters / Day

Packaging & Delivery

Package Size 120.00cm * 120.00cm * 80.00cm Package Gross Weight 1000.000kg

Product Description

RUBBER CONVEYOR BELT
Polyester core conveyer belt is a multi-layer polyester canvas bonded together by a certain way, from top to bottom coverage of high strength, good wear-resistant flexible rubber, no special corrosion for the transmission of small and medium-sized block, powder, granular and other materials.
1.Standards:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
2.Features:
Good flexibility, groove formation property and cost-effective. It is mainly used to transport powder,small and medium granular or less wearing materials at common temperature.

3.Application:Applicable to long-distance, high capacity, high-speed delivery of materials under the conditions.
Used in mining, quarries, chemical plants, architectural industry and etc.

No	Item	Data
1	Cover Rubber grade	8MPA,10MPA,12MPA,15MPA 18MPA,20MPA,24MPA,26MPA
2	Belt width (mm)	400,500,600.650,700,900,800,1000,1200 1400,1500,1600,1800,2000,2200,2500
3	Tensile strength	EP200/2,EP315/2,EP315/3,EP400/3,EP500/3,EP600/3,EP400/4,EP500/4,EP630/4,EP800/4,EP1000/4,EP500/5,EP600/5,EP750/5, EP1000/5,EP1250/5 EP600/6,EP1200/6
4	Top+Bottom thickness	3+1.5, 4+2, 4+1.5, 4+3, 5+1.5, 6+2, 7+2, 8+2
5	Belt thickness	4mm-25mm
6	Belt length	50m, 100m, 200m, 250m, 300m
7	Belt edge type	moulded(rubbered) edge or cut edge

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
