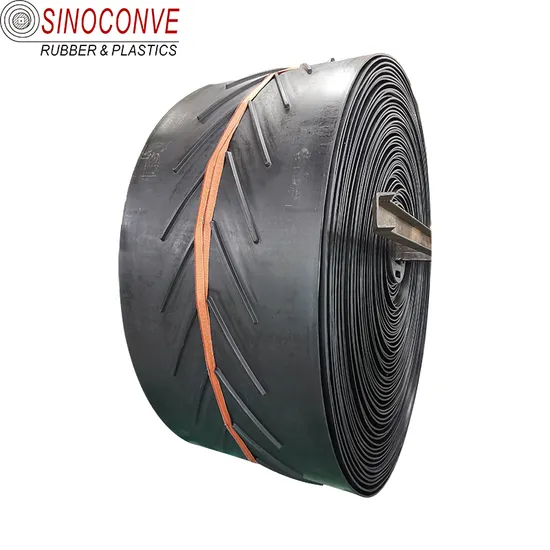

Hot Sale 10MPa Cheap Ep Nylon Cotton Fabric Laminated Steel Cord Anti Abrasion Wearing Resistant Rubber Chevron Profiled Pattern Side Corrugated Conveyor Belt

Basic Info.

Model NO.	EP315/3, EP400/3, EP500/4
Adhension 2	Ply & Ply > 5n/mm
Width Range	200mm - 2800mm
Cover Top	0mm-15mm Thickness
Packing Length	100m-500m
Belt Edge	Mould Edge / Cut Edge
Color	Black
Belt Surface	Plain / Pattern
Standard	DIN22102, Rma, Jisk, as, BS, SABS
Usage	Material Transportation
Model	Ep315/3, Ep500/4, Ep630/4, Ep800/4
Transport Package	Plastic Cloth with Iron Core
Specification	EP500/4, EP400/3, EP1000/4
Trademark	GPBELT
Origin	China
HS Code	4010120000
Production Capacity	10000meters/Day

Product Description

RUBBER CONVEYOR BELT Product PropertyRubber conveyor belt consists of rubber cover and fabric canvass. According to the working conditions, different-thickness rubber cover and different plies of fabric canvass can be adapted. Normally the framework material is EP polyester canvas interwoven with meridian terylene and latitudinal polyamide fiber. It has the advantages of short tensile, stable size, good elasticity, shock resistant, mould resistant, heat resistant and high adhesive strength. It is widely applicble to convey materials in medium and long distance, with heavy loading and at high speed. Rubber cover material is decided by its working conditions. Heavy working loading requires high tension strength of the total thickness. Rough and hard materials need high abrasive rubber cover. Oil resistant conveyor belts are used to oily material transportation. High temperature working conditions ask for heat resistant rubber cover as the working surface.
Fabric Description

Fabrictype	Fabric structure		FabricSpecs	Ply thick(mm/p)	Strength Series (N/mm)					Cover thickness (mm)		Width(mm)	Length(mm)
	Warp	Weft			2ply	3ply	4ply	5ply	6ply	Upper	Lower
EP(PolyEster)	E(Polyester)	P(Nylon)	EP80	0.60	160	240	320	400	480	2.0-8	0-4.5	400-2200	≤250
			EP100	0.75	200	300	400	500	600
			EP150	1.00	300	450	600	750	900			500-2200
			EP200	1.10	400	600	800	1000	1200
			EP250	1.25	500	750	1000	1250	1500
			EP300	1.35	600	900	1200	1500	1800
			EP350	1.45		1050	1400	1750	2100			800-2200
			EP400	1.55			1600	2000	2400			1000-2200
			EP500	1.70			2000	2500	3000

Cover properties of the belt
GB Standard:

Cover grade	Tensile strength>=		Elongation>=	Abrasive>=	Tensile strength and elongation afer agingh
Heavy (H)	24Mpa	240Kg/cm3	400%	0.7cm3/1.61km	-25-+25
Medium (M)	18Mpa	180Kg/cm3	350%	0.8cm3/1.61km	-25-+25
Light (L)	15Mpa	150Kg/cm3	300%	1.0cm3/1.61km	-30-+30

DIN Standard:

Cover Grade	Tensile Strength ( Mpa )	Abrasive ( mm3 )	Elongation ( % )
Z	15	250	350
W	18	90	400
Y	20	150	400
X	25	120	400

RMA Standard:

Cover Grade	Tension Strength (Mpa)	Abrasive ( mm3 )	Elongation ( % )
RMA-I	17	175	400
RMA-II	14	250	350

AS or BS Stanard, or any customerized rubber cover quality is available.
Adhesion and elongation of the belt

Belt Carcass	Adhesive strength			Elongation
	Between plyN/mm	Between rubber and carcass N/mm		Longitudinal Elongation at break %	Longitudinal elongation at reference load %
		Rubber thick<=1.5	Rubber thick>=1.5
EP material	>=4.50	>=23.15	>=3.50	10	20

Main Conveyor Belt:
Heat Resistant Conveyor Belt, High Temperature Conveyor Belt, Flame Retardant Conveyor Belt, Oil Resistant Conveyor Belt, Cold Resistant Conveyor belt, Chemical Resistant Conveyor Belt, Abrasion Resistant Conveyor Belt, Wearing Resistant Conveyor Belt, Chevron Belt, Pipe Conveyor Belt, Side-Wall Corrugated Conveyor Belt. All the main belts can be customerized.
Production Procedure
1. Raw Material

2. Rubber Calendering and Shaping and Vulcanization

3. Quality Control

4. Packing and Loading

FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcome to know the quality of our products.
Q2. What about the lead time of the sample or the final order?
2-5 days for normal sample.
20-30 days for a formal order.
Q3. How much is the widest conveyor belt you can produce.
2.5meters is the widest belt we can produce now.
Q4. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or your brand.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all of our products.
